MITSUBISHI CONNECT Remote Services
MITSUBISHI CONNECT Remote Services
«

Parental Controls - Geofence Alert

03_06_02_Geofence

Service description

Geofence Alert is a convenient way to set parameters and receive alerts on the location of where your vehicle is traveling. Select the Geofence feature and set Geofence Alert with your desired radius on the map. Once the set radius parameter is violated, you will receive alerts according to the notification preferences that you provided. You can change the Geofence Alert settings in the map screen and enable or disable the Geofence Alert as needed.

*You will receive a notification when the vehicle enters or exits Geofence.

Setting Geofence from your mobile app

03_06_02_01_Setting_permitted_area_from_your_mobi

Adding a new area

  1. Select [ ] from the HOME screen.

  2. Select "Manage Vehicles".

  3. Select "Parental Controls".

  4. Select "GEOFENCE ALERT".

  5. Select [ ] to enter a new setting.

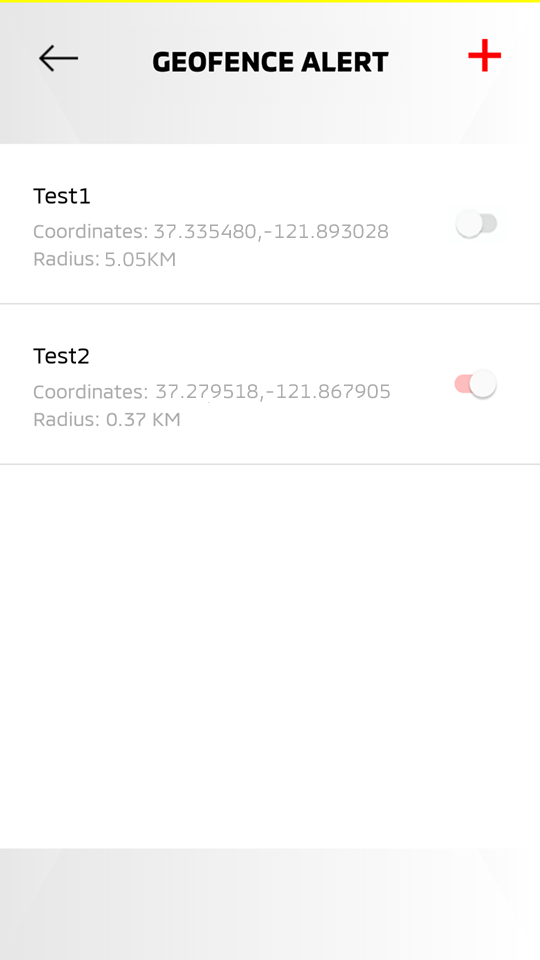

    • If you have already saved the set area, the list of Geofences will be displayed.

    • You can add up to 5 set areas.

  6. Select the center of the set area.

  7. Pinch to zoom in and out to adjust the set area, then select "SAVE".

    • The distance displayed at the bottom of the screen is the radius of the set area.

    • When the adjusted set area is too wide (310 miles in radius) or too small (less than 1,640 ft in radius), the area unit turns red and cannot be saved.

    • The address displayed at the top of the screen is the center of the set area.

  8. Enter the set area name, then select "SAVE".

  9. Enter your security PIN and your new set area is saved.

Editing the registered set area

HOME [ ] Manage Vehicles Parental Controls GEOFENCE ALERT

  1. Select a registered set area from the list by selecting the registered set area name.

  2. The set Geofence is displayed. Select [ ] if you wish to edit the Geofence area.

  3. The current setting is displayed in a red circle and the new area is displayed in a green circle. Select the center of the set area.

  4. Pinch to zoom in and out to adjust the set area, then select "SAVE".

  5. Enter your security PIN and your edited set area is saved.

Disabling the registered set area

HOME [ ] Manage Vehicles Parental Controls GEOFENCE ALERT

  1. Confirm the registered set area from the list.

    Select a registered set area name to confirm the details of the registered set area.

  2. If you wish to disable the selected set area, toggle the switch to the left (OFF).

  3. Enter your security PIN.

  4. The switch is toggled to the left and the selected set area is disabled.

    Toggle the switch again to enable the Geofence Alert.

Deleting the registered set area

HOME [ ] Manage Vehicles Parental Controls GEOFENCE ALERT

  1. Select a registered set area from the list by selecting the registered set area name.

  2. The set Geofence is displayed. Select [ ] if you wish to delete the Geofence area.

  3. If you wish to delete the selected set area, select [ ].

  4. Select "DELETE".

  5. Enter your security PIN and your selected set area is deleted.

Note

  • Please note that all Safeguard and Remote services are subject to cellular network availability. When the cellular network coverage is poor, Geofence Alert may not function properly.

  • Up to 5 Geofence areas can be set.

    • A message will be displayed if you try to set more than 5 set areas.

  • The set area violation notification can be changed to your preferred method. (Refer to "Notifications")

Setting Geofence from the owner portal

03_06_02_02_Setting_permitted_area_from_owner_por

Adding a new area

Access website OWNERS Telematics ACCESS CONTROLS

  1. Select "Add Geofence Alert".

  2. Enter the requested items regarding the set area.

  3. Select "SAVE CHANGES" to save the added set area.

    Select "CANCEL" to cancel Geofence Alert settings.

Editing the registered set area

Access website OWNERS Telematics ACCESS CONTROLS

  1. Select "See Details +" to display a registered set area.

  2. Edit the registered set area.

  3. Select "SAVE CHANGES" to save the edited set area.

    Select "CANCEL" to cancel the Geofence Alert settings.

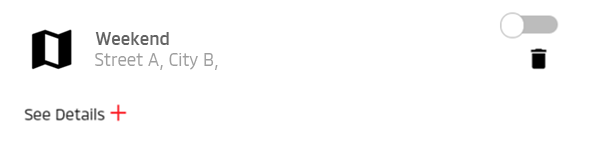

Disabling the registered set area

Access website OWNERS Telematics ACCESS CONTROLS

  1. Confirm the registered set area.

    Select "See Details +" to confirm the registered set area you saved.

  2. If you wish to disable the set area, toggle the switch to the left (OFF).

  3. The switch is toggled to the left and the selected set area is disabled.

    Toggle the switch again to enable the Geofence Alert.

Deleting the registered set area

Access website OWNERS Telematics ACCESS CONTROLS

  1. Confirm the registered set area.

    Select "See Details +" to confirm the registered set area you saved.

  2. If you wish to delete the set area, select [ ].

Note

  • Please note that all Safeguard and Remote services are subject to cellular network availability. When the cellular network coverage is poor, Geofence Alert may not function properly.

  • Up to 5 Geofence areas can be set.

    • The message will display if you try to set more than 5 set areas.

  • The set area violation notification can be changed to your preferred method. (Refer to "Notifications")
